Bigger size, smarter engineering
For enthusiasts running modern high wattage hardware or anyone dealing with heat buildup in their case, the NF-A14x25 G2 series is a standout upgrade and a strong indication that Noctua still holds a firm lead in precision fan engineering.
The Good
- Strong cooling performance
- Very quiet operation
- High build quality
The Bad
- Price per fan is very top end
-
Quality
-
Noise
-
Air flow
-
Pricing
Cooling has changed a lot over the years. What used to be a simple matter of moving air out of a case has become a balancing act between acoustics, airflow quality, static pressure, and motor behavior. With hardware getting hotter each generation, especially CPUs like my i7-14700KF and heavy hitter RTX 3080-Ti, the need for reliable 140mm fans has never been more important.
Noctua’s new NF-A14x25 G2 is the company’s answer to that demand, and it arrives with the confidence of a product that has been in development for a long time. A continuation from the new A12x25 G2s I reviewed not to long ago.
The A12x25 G2 made a strong impression in the 120mm category. The A14x25 G2 aims to do the same in the larger size class, but it is not just a scaled up version of the smaller fan. Noctua has reworked several aspects of the design to match the different airflow behavior of a 140mm rotor. The result is a fan that feels purpose built rather than resized.
Let’s spin around these new redesigned masterpieces and see why Brown and Tan is the Gold standard.
Design
At first glance, the A14x25 G2 carries the familiar tan frame and brown rotor that Noctua has become known for. A closer look reveals how much engineering is packed into this generation.
The frame is built on Noctua’s Advanced Acoustic Optimisation structure which combines a sturdy housing with subtle elements like the stepped inlet design and inner surface microtextures.
These features help stabilize incoming air and reduce turbulence before it even reaches the blades. The corners use Noctua’s soft vibration damping pads which cushion the fan against the case and help prevent structural noise from transferring into the chassis.
The impeller is the highlight. It is made from Noctua’s Sterrox polymer which is exceptionally stiff and resists thermal expansion. Because the material barely flexes even at higher speeds, the blades can spin with a very tight gap between their tips and the inside of the frame. This tiny clearance dramatically reduces leakage around the blade edges which improves both airflow and static pressure performance especially when the fan is placed behind dust filters or in front of dense radiators.
Even see how thin the shipment paper is between the fan and the frame:
For this 140mm format, Noctua redesigned the blade geometry. The curvature is sharper and the flow acceleration channels along the leading edges help guide air smoothly across the surface. This reduces turbulence and cuts down on the tonal spikes that larger fans sometimes produce.
The hub has been updated as well with a centrifugal flow mechanism that keeps air from stalling in the center region and pushes more of the airflow toward the high efficiency portion of the blades.
Inside the fan, Noctua uses its SSO2 bearing which combines hydrodynamic stabilization with a magnetic element placed closer to the rotor axis. This improves long term stability and prevents the tiny wobble that can develop in lesser bearings over time.
These NF-A14x25 G2s are controlled by Noctua’s latest PWM controller which responds cleanly to rapid speed changes without flicker or mechanical chatter. Motherboards or fan controllers that ramp their fans aggressively benefit a lot from that refinement.
The Sx2 PP variant ships as a matched pair with each fan calibrated to run at slightly different speeds. This small offset keeps the two units from producing the same resonant frequency which helps eliminate the pulsing sound that can occur when identical fans operate side by side. The effect is subtle but the combined noise profile becomes noticeably smoother.
Functionality
Installing the NF-A14x25 G2 is straightforward. These specific fans went into my younger brother’s gaming rig. His build is properly “Noctua’ed”.

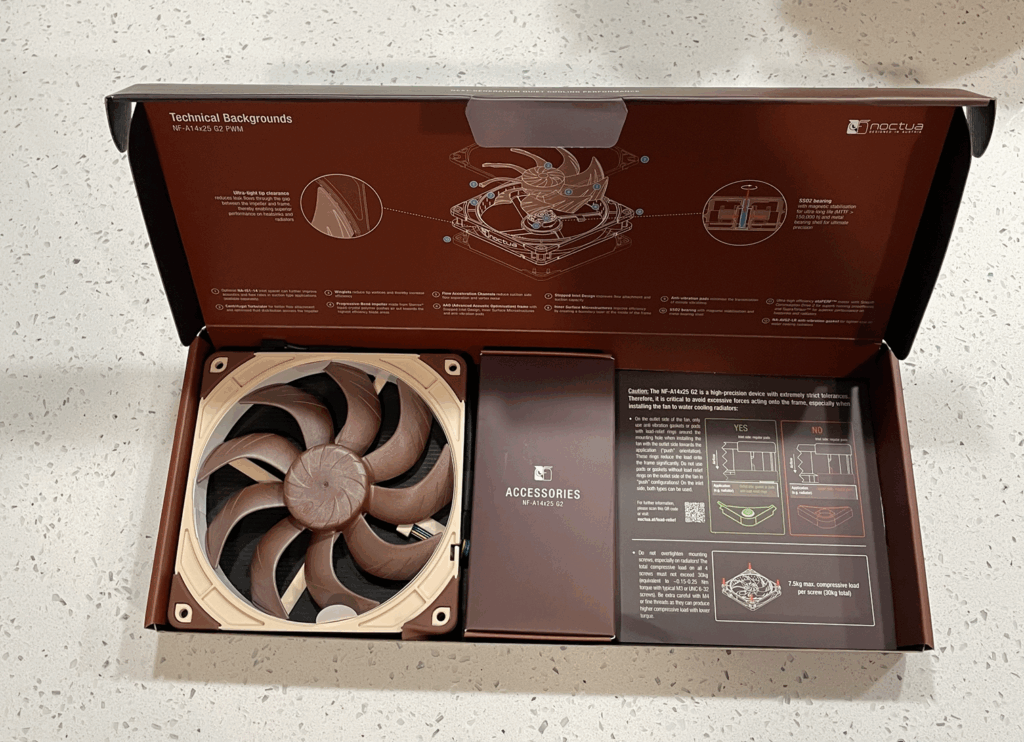

Inside the box comes with a familiar set of accessories, though the mounting brackets now arrive pre-installed rather than packed separately. It is a small detail but it helps keep the brackets intact during shipping. The interior accessory cartons are simple but not especially sturdy.
Threading the screws is simple but pre-threading them once outside the case makes installation much easier.
In actual use, the new fans made an immediate difference. The test system for this review used an Intel i7-14700KF and an RTX 3080-Ti which are both known to run hot and pull significant power.
With room temperature at about 70-degrees Fahrenheit, the system previously hovered higher than I liked even with an aggressive fan curve. After replacing the older 140mm fans with the A14x25 G2 units, temperatures dropped across the entire system. Idle, gaming, and heavy loads all showed measurable improvements.
After Temps
- Overwatch 2 – Max Settings 2K 144Hz
- Ready or Not – Max Settings 2K 144Hz, 90FPS DLSS
- Idle Windows
The fans ramp gracefully on a steep fan curve. At low speeds, they are genuinely quiet to the point where the only indicator they are operating is the airflow itself. At higher speeds, they move a surprising amount of air for their noise level. What stands out most is how clean the sound is. There is very little mechanical tone and almost none of the flutter that sometimes appears in 140mm designs.
The system no longer spikes or oscillates under demanding workloads which is a noticeable improvement when running heavy games or CPU intensive tasks.
The Sx2 PP pair performed especially well on the top intake of the case. The slightly mismatched RPM behavior does exactly what Noctua intended by smoothing out the overall sound profile. It is one of those small engineering tricks that you would never notice until you hear the combined result.
My Final Thoughts
The NF-A14x25 G2s make a compelling case for being one of the best 140mm fans available. It offers excellent cooling performance, a refined acoustic profile, and build quality that feels ready for years of continuous use. The improvements over previous Noctua 140mm fans are substantial enough that the upgrade feels meaningful rather than incremental.
It’s not every day that Noctua can improve on their existing perfection.
These fans are not inexpensive, but in a high power system the investment pays off immediately. The single NF-A14x25 G2 will run you $45 each while the Sx2-PP’s are $85.
Better airflow means lower temperatures which leads to more stable boost behavior and a quieter machine overall. Whether installed on radiators, as case intakes, or in a push pull configuration with the Sx2 PP set, the A14x25 G2 consistently performs at a level that matches its premium reputation.
After seeing the improvements firsthand, it is easy once again to recommend these fans to anyone who needs serious cooling power without sacrificing quiet operation.
As a reviewer for Noctua’s products, let me say how it becomes easier and easier to recommend their products every single time when you get to experience this level of quality.
If you want a cooling solution that will outlast most of the parts inside your case, this is one of the safest investments you can make.

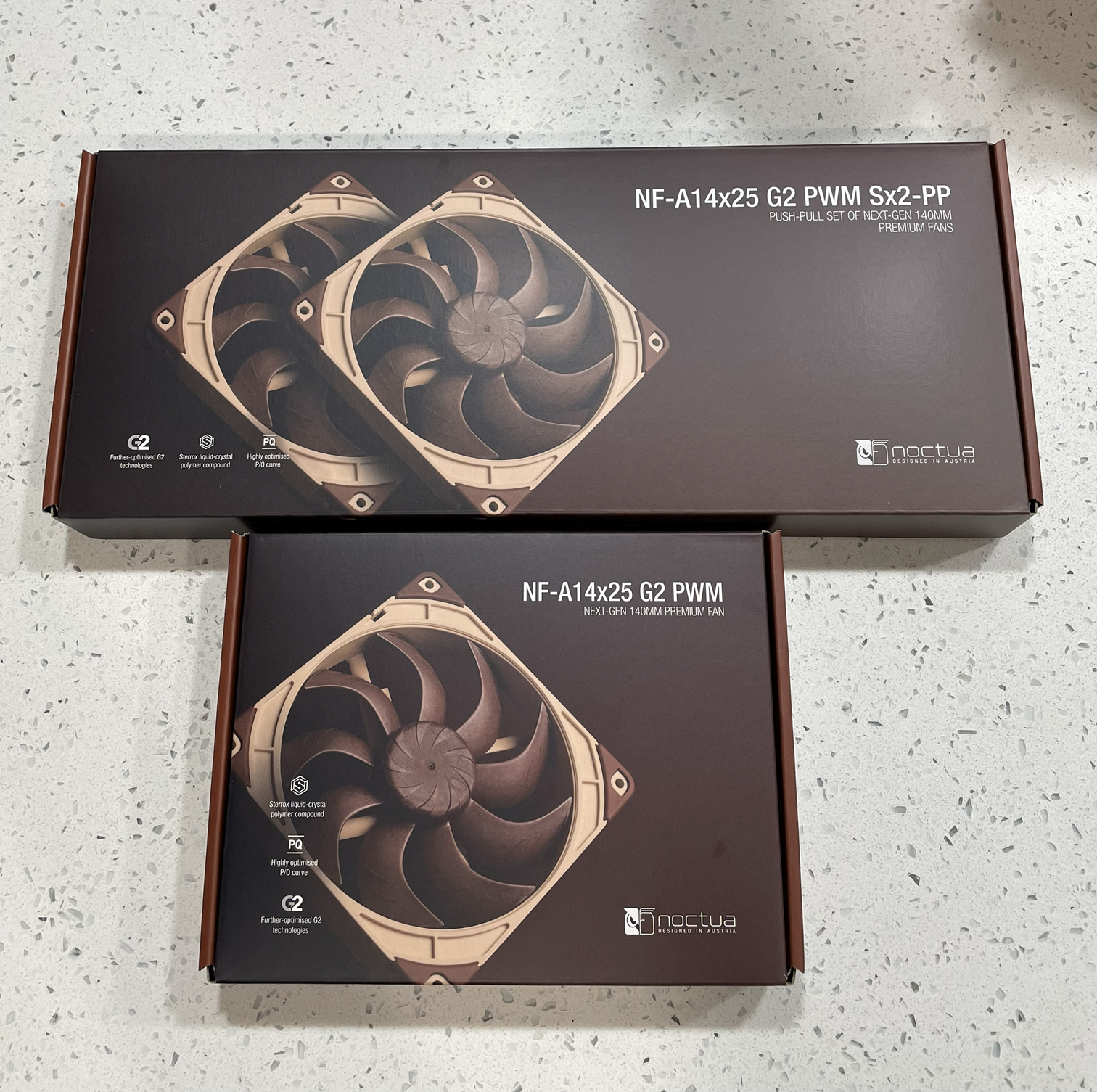

Noctua NF-A14x25 G2 PWM
Noctua NF-A14x25 G2 PWM Sx2-PP
